20/20 SCOPE KIT 40mm

40KITR

$211.85

It is our mission to not only provide you with a better made, better performing scope but a scope to help you see your pin and target better, execute your shot better and overall perform better.

The 20/20 Scope also provides you with more customization options and features than any other archery scope on the market today. The 20/20 Scope has 35 total add-on accessories available to choose from and all pieces of the scope kit contain matching threads so you customize your scope kit how you would like before even adding any accessories.

40mm Kit Includes:

Scope Housing
Lens Base
Short Shade
Long Shade
Peep Ring

Features:

Pin groove keeps pin straight and fiber behind the pin

Nine 8/32 tapped holes for attaching light kit: One angled to intersect center of lens for illuminating a colored dot

All 20/20 components are interchangeable with matching threads

5/16 Mounting Slot accepts a hex or square mounting shaft

8 Pin Mounting Positions

Useful Dimensions:

Short and Long Shade have an outside diameter of 1.98"

Lens Diameter: 1.750" / Max Lens Diameter: 1.755"

Overall length of kit: 3.5" (Scope housing, lens base, long hood, short hood & peep ring)

Inside diameter of scope: 40mm

**Filter Kits, Lens & Pin Sold Separately

Weight: 3 oz

20/20 COMPATIBILITY

AXCEL ACCUTOUCH

AXCEL ACCUHUNTER

AXCEL ACHIEVE XP

AXCEL ACHIEVE CBL

AXCEL AX3000

AXCEL AX2000

AXCEL CX

AXCEL CXL

AXCEL LANDSLYDE

DIRECT FIT TO SCOPE

B3 COMPETITION

B3 EXACT

BLACK GOLD COMPETITION

CBE VERTIX

SURE-LOC CHALLENGER

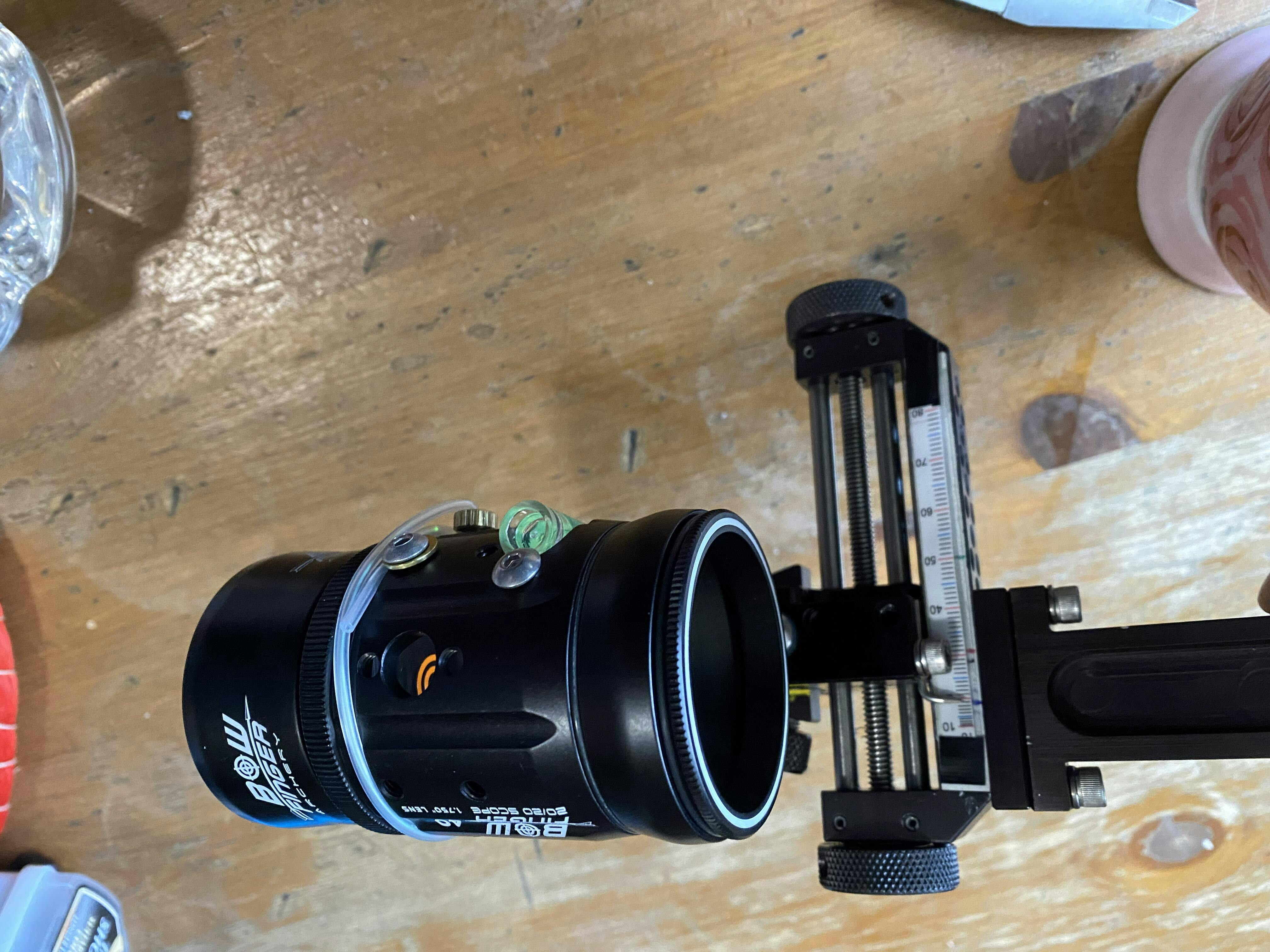

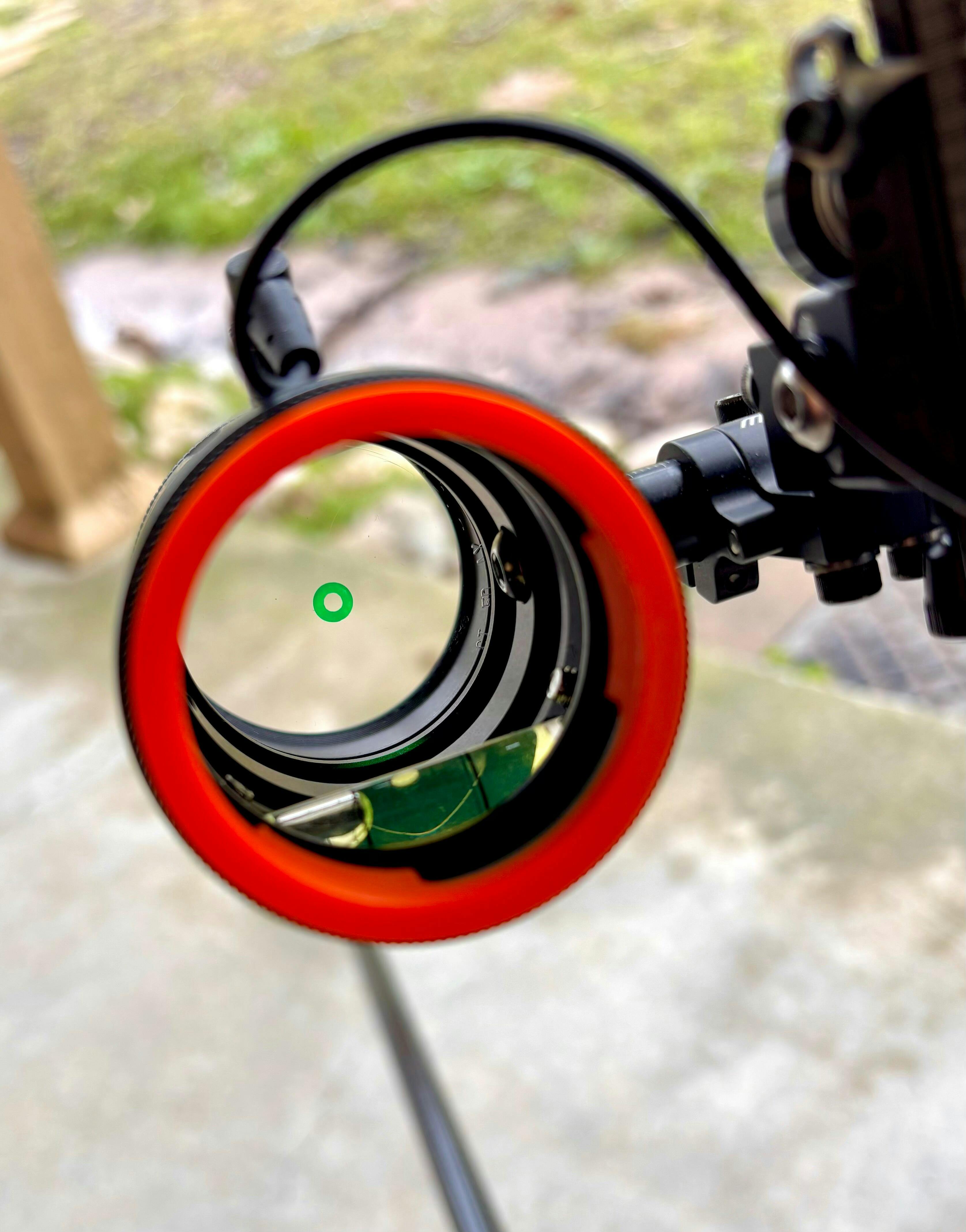

I could have done with this before now!

I’ve shot target archery for years but wanted to try unmarked 3D. On my first attempt I used my 8x scope (M.T.Z.) and clarifier, but couldn’t see any low light targets. On my second attempt, same scope with 4x lens and clarifier. All good until the light got really low, and I didn’t have the field of view to identify the target clearly. My other scope while having a 35mm lens, has a reduced 29mm sight aperture. With this I have a full 40mm, and the ability to shorten the rear shade. I can’t wait to try it in really low light. I may not even use the clarifier. I’m very impressed. It only took 10 minutes to assemble including fibre kit, and fit to my Davis BD4.
